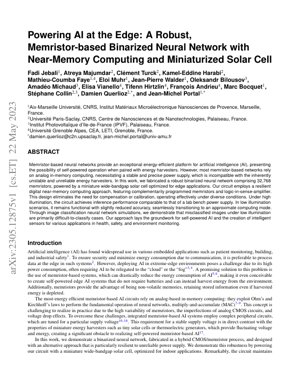

Powering AI at the Edge: Robust Memristor-based Binarized Neural Network with Near-Memory Computing

Table of Contents

1. Introduction

The research presents a groundbreaking approach to edge AI by combining memristor-based binarized neural networks with miniature solar cells. This integration addresses the critical challenge of powering AI systems in extreme-edge environments where stable power sources are unavailable. The system demonstrates remarkable resilience to power fluctuations, maintaining functionality even under low illumination conditions equivalent to 0.08 suns.

2. Technical Architecture

2.1 Memristor Array Design

The circuit incorporates four arrays of 8,192 memristors each, totaling 32,768 memristors. Each array is organized in a crossbar configuration optimized for digital near-memory computing. The memristors are fabricated using a hybrid CMOS/memristor process, enabling high-density integration while maintaining manufacturing compatibility with standard semiconductor processes.

2.2 Digital Near-Memory Computing

Unlike traditional analog in-memory computing approaches, this system employs a fully digital architecture with logic-in-sense-amplifier and complementarily programmed memristors. This design eliminates the need for analog-to-digital conversion and complex peripheral circuits, significantly reducing power consumption and improving resilience to supply voltage variations.

2.3 Power Management System

The system integrates a miniature wide-bandgap solar cell specifically optimized for indoor applications. The power management circuitry is designed to handle the inherent instability of energy harvesters, allowing the neural network to transition seamlessly between precise and approximate computing modes based on available power.

3. Experimental Results

3.1 Performance Under Variable Illumination

Under high illumination conditions, the circuit achieves inference performance comparable to lab bench power supplies, with classification accuracy matching software-based implementations. As illumination decreases to 0.08 suns, the system maintains functionality with only a modest accuracy degradation of 8-12% across tested benchmarks.

3.2 Accuracy vs. Power Consumption

The research demonstrates that misclassified images under low power conditions are primarily difficult-to-classify cases that challenge even well-powered systems. This graceful degradation characteristic makes the system particularly suitable for applications where occasional errors are acceptable in exchange for extended operational lifetime.

4. Technical Implementation

4.1 Mathematical Foundation

The binarized neural network employs binary weights and activations, significantly reducing computational complexity. The forward propagation can be represented as:

$$a^{(l)} = sign(W^{(l)} a^{(l-1)} + b^{(l)})$$

where $W^{(l)}$ represents binary weights, $a^{(l)}$ are binary activations, and the sign function outputs ±1. The memristor crossbar performs the matrix multiplication $W^{(l)} a^{(l-1)}$ efficiently using resistance-based computation.

4.2 Code Implementation

class BinarizedNeuralNetwork:
    def __init__(self, memristor_arrays):
        self.arrays = memristor_arrays
        self.lisa_units = []  # Logic-in-Sense-Amplifier units

    def forward_pass(self, input_data):
        # Binarize input
        binary_input = np.sign(input_data)

        # Process through memristor arrays
        for i, array in enumerate(self.arrays):
            # Digital near-memory computation
            output = array.compute(binary_input)
            # LISA processing
            output = self.lisa_units[i].process(output)
            binary_input = np.sign(output)

        return output

    def adaptive_power_mode(self, available_power):
        if available_power < self.power_threshold:
            return "approximate"
        else:
            return "precise"

5. Future Applications

The technology enables numerous applications in health monitoring, industrial safety, and environmental sensing. Specific use cases include:

• Self-powered wearable health monitors for continuous patient monitoring
• Intelligent sensors for predictive maintenance in industrial settings
• Environmental monitoring systems in remote locations
• Always-on security systems with embedded AI capabilities

Future developments could focus on scaling the technology to larger networks, integrating multiple energy harvesting sources, and developing specialized architectures for specific application domains.

6. References

1. Jebali, F. et al. "Powering AI at the Edge: A Robust Memristor-based Binarized Neural Network." arXiv:2305.12875 (2023)
2. Hubara, I. et al. "Binarized Neural Networks." Advances in Neural Information Processing Systems (2016)
3. Wong, H. S. P. et al. "Metal–oxide RRAM." Proceedings of the IEEE (2012)
4. Esser, S. K. et al. "Convolutional networks for fast, energy-efficient neuromorphic computing." Proceedings of the National Academy of Sciences (2016)
5. Yang, J. J. et al. "Memristive devices for computing." Nature Nanotechnology (2013)
