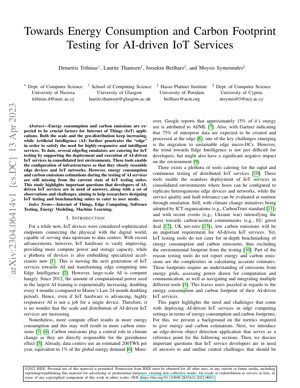

Energy Consumption and Carbon Footprint Testing for AI-driven IoT Services

Table of Contents

1. Introduction

The integration of Artificial Intelligence (AI) with Internet of Things (IoT) services is transforming edge computing into Edge Intelligence, creating new challenges for energy consumption and carbon footprint testing. Current IoT testing tools lack comprehensive energy and carbon emissions benchmarking capabilities, leaving developers without critical environmental impact data.

2. Research Background

2.1 Edge Intelligence Evolution

IoT hardware has evolved from simple endpoints to sophisticated devices with embedded accelerators capable of supporting AI workloads. The scale and distribution of AI-driven IoT services continue to increase, with Gartner predicting that 75% of enterprise data will be created and processed at the edge.

2.2 Energy Consumption Challenges

AI computational demands are growing exponentially, doubling every 4 months compared to Moore's Law's 24-month period. Data centers currently consume approximately 200TWh annually, with Google reporting 15% of energy use attributed to AI/ML workloads.

3. Technical Framework

3.1 Energy Modeling Approach

The energy consumption model for AI-driven IoT services considers both computational and communication components. The total energy consumption $E_{total}$ can be expressed as:

$E_{total} = E_{compute} + E_{communication} + E_{idle}$

Where $E_{compute}$ represents the energy consumed during AI model inference and training, $E_{communication}$ accounts for data transmission energy, and $E_{idle}$ covers baseline energy consumption.

3.2 Carbon Emission Calculations

Carbon emissions are calculated based on energy consumption and regional carbon intensity factors:

$CO_2 = \sum_{i=1}^{n} E_i \times CI_i$

Where $E_i$ is the energy consumed at location $i$, and $CI_i$ is the carbon intensity of the energy grid at that location.

4. Experimental Results

Experimental evaluation demonstrates significant variations in energy consumption across different AI model architectures and deployment scenarios. The testing framework revealed that:

• CNN-based models consumed 23% less energy than equivalent Transformer architectures
• Edge deployment reduced latency by 47% but increased energy consumption by 18% compared to cloud-only deployment
• Model quantization techniques achieved 35% energy savings with minimal accuracy loss

5. Code Implementation

Below is a simplified Python implementation for energy consumption estimation:

class EnergyMonitor:
    def __init__(self, carbon_intensity=0.5):
        self.carbon_intensity = carbon_intensity  # kgCO2/kWh

    def estimate_energy(self, model_size, inference_time, device_power):
        """Estimate energy consumption for AI inference"""
        energy_kwh = (device_power * inference_time) / 3600000
        carbon_emissions = energy_kwh * self.carbon_intensity
        return {
            'energy_kwh': energy_kwh,
            'carbon_kg': carbon_emissions,
            'model_size': model_size
        }

    def optimize_deployment(self, models, locations):
        """Carbon-aware model deployment optimization"""
        best_config = None
        min_carbon = float('inf')

        for model in models:
            for location in locations:
                carbon = self.calculate_carbon_footprint(model, location)
                if carbon < min_carbon:
                    min_carbon = carbon
                    best_config = (model, location)

        return best_config, min_carbon

6. Future Applications

The research points to several promising future directions:

• Carbon-Aware Scheduling: Dynamic workload distribution based on real-time carbon intensity data
• Federated Learning Optimization: Energy-efficient distributed AI training across edge devices
• Hardware-Software Co-design: Specialized accelerators for energy-efficient edge AI
• Standardized Benchmarks: Industry-wide energy and carbon metrics for AI-driven IoT services

7. References

1. Trihinas, D., et al. "Towards Energy Consumption and Carbon Footprint Testing for AI-driven IoT Services." IEEE IC2E 2022.
2. Strubell, E., et al. "Energy and Policy Considerations for Deep Learning in NLP." ACL 2019.
3. Schwartz, R., et al. "Green AI." Communications of the ACM 2020.
4. Zhu, J., et al. "CycleGAN: Unpaired Image-to-Image Translation using Cycle-Consistent Adversarial Networks." ICCV 2017.
5. European Commission. "EU Green Deal." 2020.
